Video Wall Touch Solutions
— any display, any size
Product Advantages
Works with all video walls
LCD splicing, Micro/Mini LED (seamless), projectors — our IR filtering handles optical noise from any display technology.
E‑Series: up to 12m, 64pts
Full touch up to 12m no blind zone. Supports irregular shapes, curved walls, outdoor (waterproof/anti-glare).
K‑Series: ultra‑slim, modular
World's narrowest bezel (12‑15mm). Segments in 300/600mm units — perfect for LED cabinet integration.
100m USB extension & SDK
Ethernet‑based relay (USB1.1 compatible) for remote host placement. TUIO, dynamic/static remapping, SDK.
Where video wall touch makes a difference
Interactive video walls — engage, explore, convert

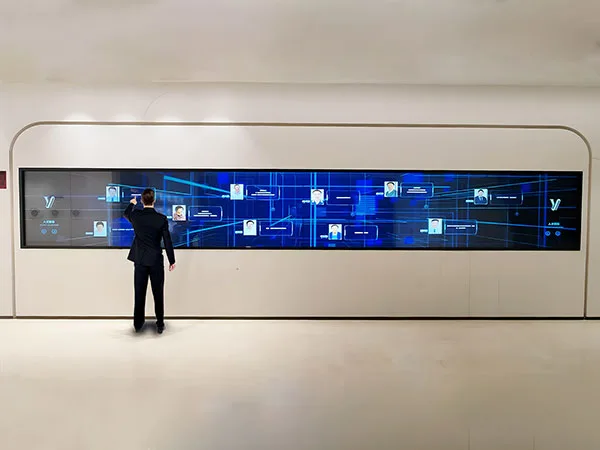

Corporate showroom
Touch‑enabled product walls let visitors explore offerings at their own pace, boosting engagement and sales.

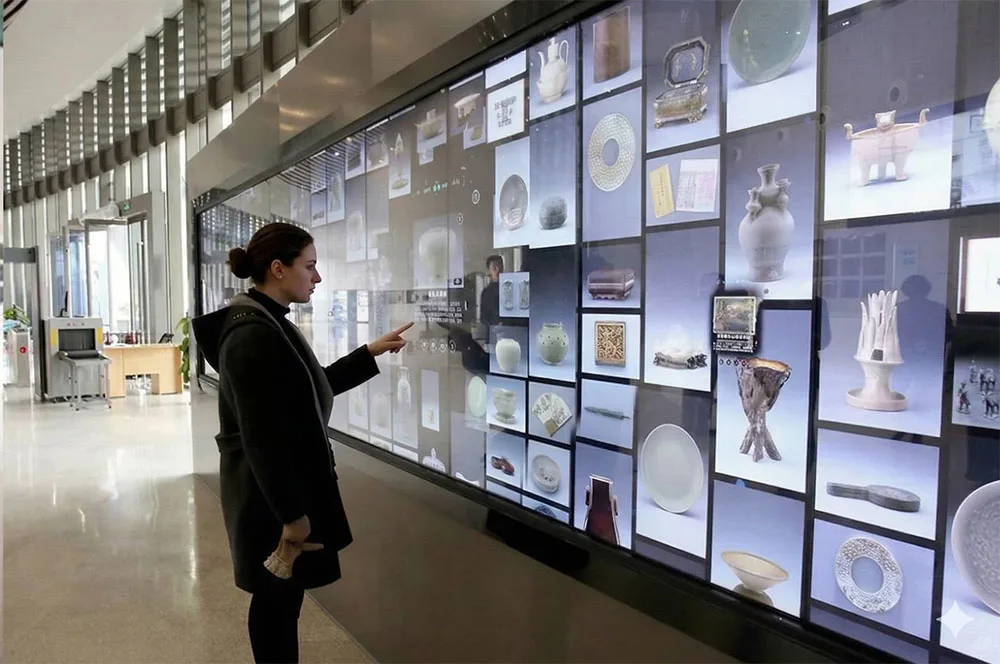

Digital museum
Interactive timelines and artifact browsers — visitors touch to dive deeper into history.

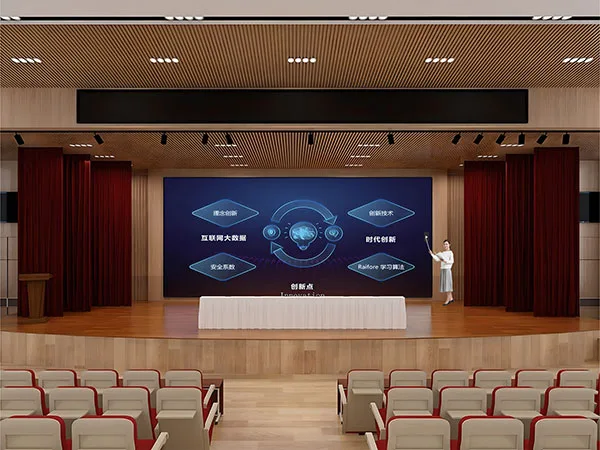

Large conference room
Command‑center style video walls with touch for real‑time data manipulation and presentations.
Video wall series
Technical specifications
E‑Series · universal video wall
| Touch points | 10–32 (up to 64 on request) |
| Accuracy | < ±1mm |
| Max size (full touch) | 12m (500″) no blind zone |
| Display compatibility | LCD splicing, Micro/Mini LED, projection |
| Special shapes | Irregular, curved, outdoor (waterproof) |
| Light immunity | 10,000 LUX, shielded receivers |
| USB extension | Up to 100m via Ethernet relay (USB1.1) |
| Protocols | TUIO, SDK, dynamic/static remapping |
Applications
K‑Series · LED video wall specialist
| Touch points | 20 (up to 64) |
| Accuracy | < ±1mm |
| Response | <6ms |
| Max size | 5m (240″) |
| Bezel width | 12–15mm (world’s narrowest) |
| Modular segments | 300mm / 337.5mm / 600mm units |
| Designed for | LED cabinets, COB, fine-pitch LED |
| Anti-interference | Patented LED noise filtering |
| USB extension | 100m via relay, TUIO, remapping |
Applications
Long‑distance USB: For video walls where the host is in a server room, our Ethernet‑based relay extends USB up to 100m (compatible with USB 1.1).

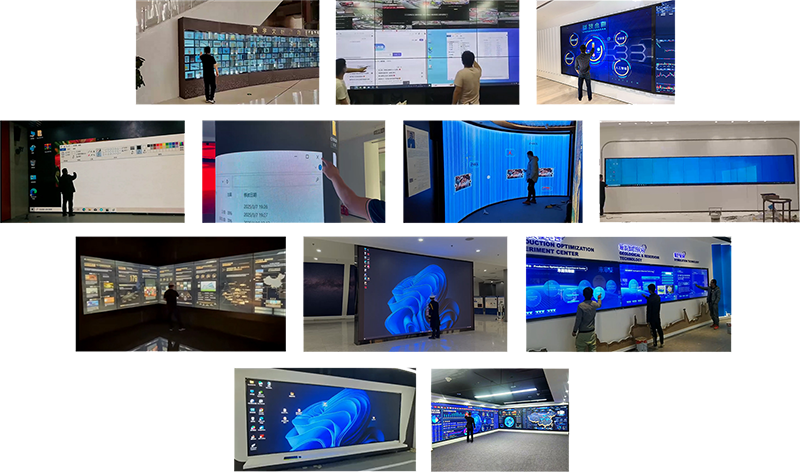

Video wall touch in action
Curved Display Touch Case – Museum
Seamless touch interaction on a curved display, made possible by our flexible infrared touch frame technology.
Digital Exhibition Hall – L-Shape IR Touch Frame
Unlock a seamless interactive experience in digital exhibition halls.
8m×3.3m LED touchscreen - school auditorium
Smooth multi-touch on a large LED wall, perfect for interactive presentations in school auditoriums.
U-Shape LCD Touch Screen - City Planning Hall
Our infrared touch frame makes any tiled screen responsive and easy to interact with.
