Turn Any TV Into a Touchscreen
— Cost less than $2 per inch
Product Advantages
＜ $2 per inch*
Extremely cost‑effective (*excl. freight & duties). Transform any TV with touch for a fraction of a commercial touch screen.
Ditch the remote

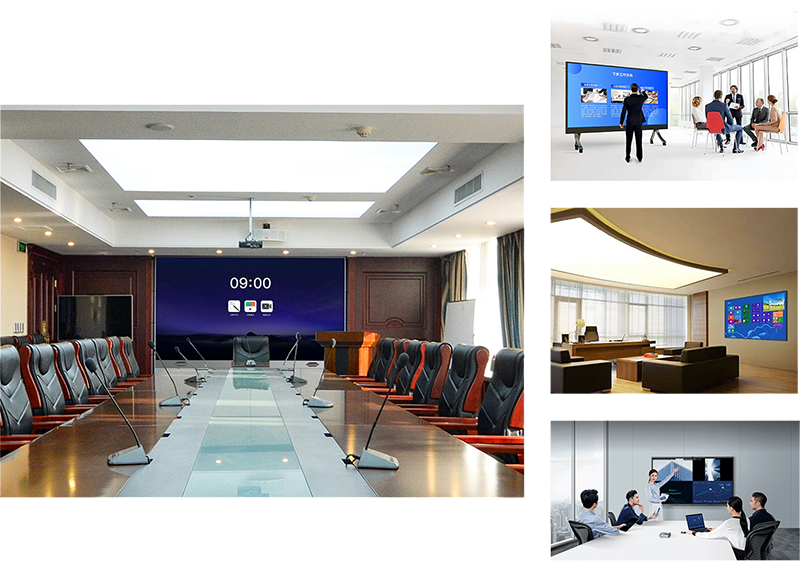

Touch control for home entertainment, education, building automation, home office, meetings — intuitive and direct.
100"+ like commercial TV
On large TVs >100", our frames deliver a premium interactive experience comparable to dedicated touch tables — no glass overlay needed.
Easy integration
Works with set‑top boxes (HID driver required), Android sticks, or mini PCs. Just plug & touch.
Three TV types — which touch frame fits?
Basic TV / monitor
TVs that only accept external signals (set‑top box, cable). Essentially an HDMI display.
Recommended: F‑Series (19mm bezel)
Attach frame with
connector + elastic strap
Plug USB into the set‑top box (ensure HID touch driver not stripped). Test with a low‑cost sample first. If box lacks HID, use an Android/Windows mini PC.
Smart TV (＜100")
Sizes: 27″–110″ (32,40,43,49,55,65,70,75,86,98,100). Built‑in Android/Linux.
Recommended: F‑Series (18mm bezel)
Confirm HID driver not stripped (test with sample). F‑Series offers ultra‑thin 10mm profile and narrow 18mm bezel for a clean look. Up to 40 touches.
Large LED TV (108"–200"+ )
High‑end COB LED TVs (Hisense, Skyworth, etc.) with sturdy modules. Android 6+ fully supports USB HID touch.
Recommended: K‑Series (15mm bezel)
Ultra‑slim 12–15mm bezel, 20‑point touch, patented anti‑interference for LED noise. We match mainstream Chinese COB TVs; for others, provide outline drawing. Side‑mount, leaves ports accessible.
Technical Specifications
K‑Series & F‑Series
K‑Series · for large LED TVs (108"–240")
| Touch Accuracy | < ±1mm |
| Touch Points | 20 simultaneous |
| Response Time | <6ms |
| Max Size | 240″ (5m) · 12mm bezel |
| Dual-Host | Dual-USB, dynamic mapping |
| Sunlight | 10,000 LUX shielded |
| Anti-interference | Patented LED noise filtering |
| Modularity | 300/337.5/600mm units; side-mount |
| Compatibility | Win/macOS/Linux/Android, TUIO, SDK |
Applications
F‑Series · 27"–110" for smart/basic TVs
| Touch Accuracy | < ±1mm |
| Touch Points | 40-touch capability |
| Latency | <10ms |
| Sunlight | 10klux operation |
| Profile/Bezel | 10mm ultra-thin, 18mm bezel width |
| Glass overlay | 3mm tempered option (wood crate) |
| Reliability | 500k+ units deployed |
| Compatibility | Win/macOS/Linux/Android, HID, TUIO |
Applications
Related Videos
E Series Frame on 138" Skyworth COB LED Smart TV
10-32 simultaneous touch points, Ultra-fast 10ms response time & 24mm bezel
K Series on 136" Hisense LED TV
Ultra slim 12mm bezel, 20 point touch, LED noise rejection demo
F Series on 55" smart TV Easy strap mounting
plug & play with Android TV — no remote needed
TOUCHSMITH vs Other, Which one is better?
The TouchSmith touch frame has significant advantages in core metrics such as patents, anti-light interference, installation and maintenance, accuracy, response time, and maximum width.
