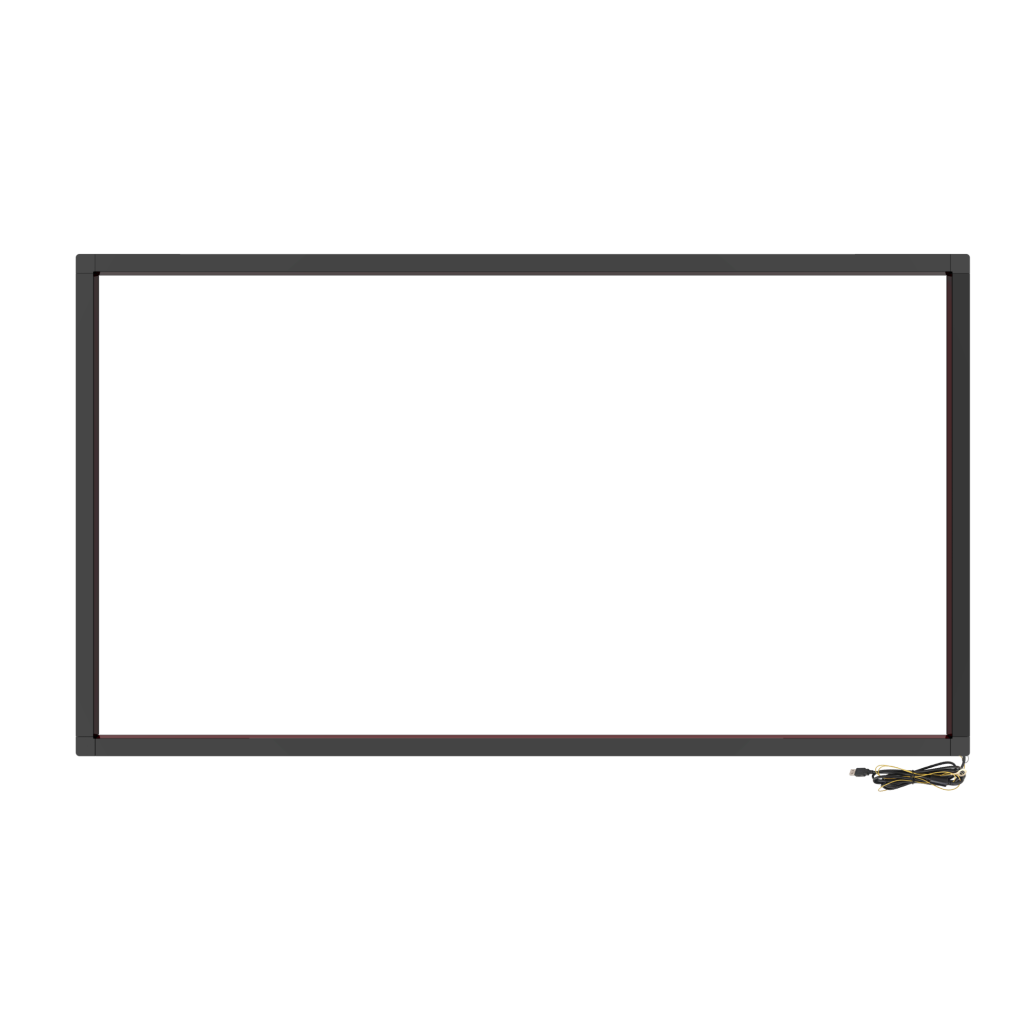

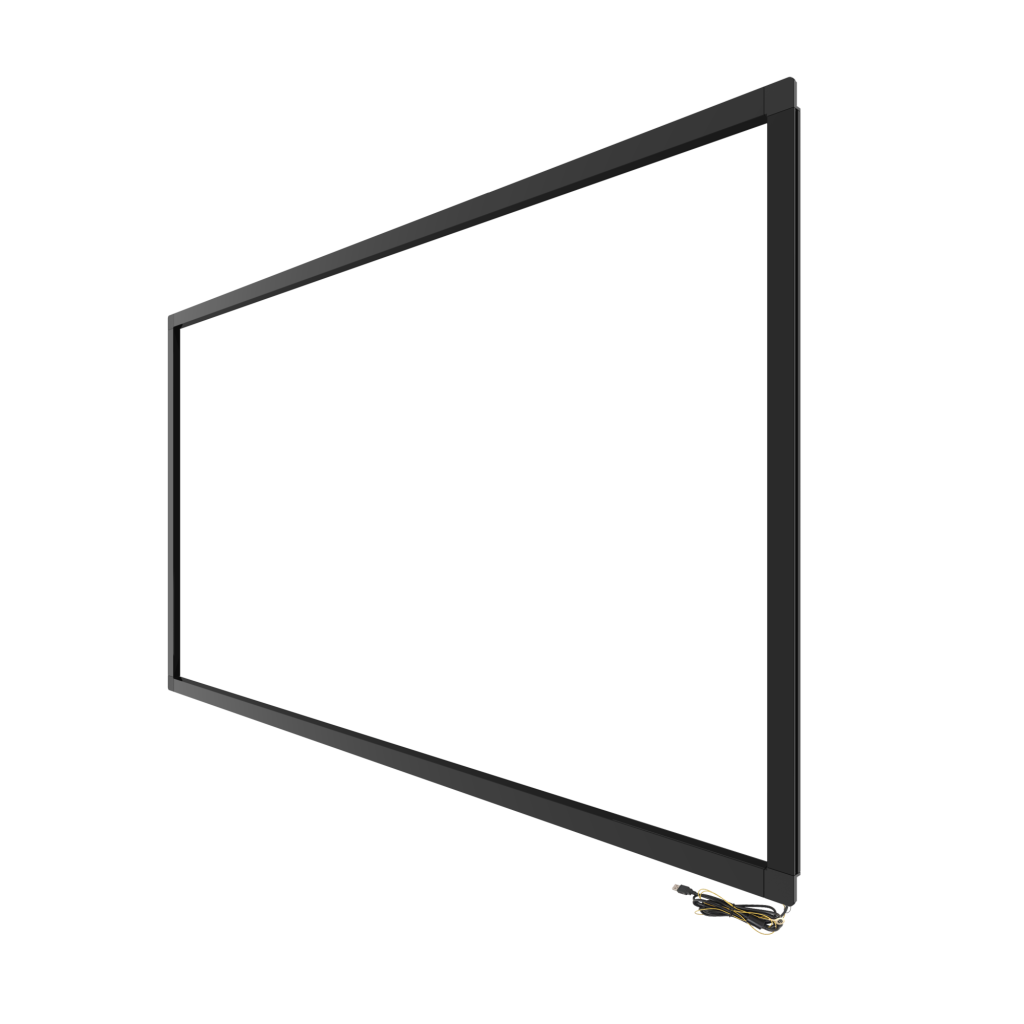

E-Series Custom Solutions
Core Advantages
① Precision Touch
- Touch Accuracy: <±1 mm
- 10-32 simultaneous touch points
- Ultra-fast 10 ms response time & 24 mm bezel
- Full touch coverage up to 12 m (only 10-20 cm inactive edges on 17 m displays)
- Sunlight-Resistant Design: High-intensity infrared-emitting diodes mounted on the lower bezel, stable performance under 10,000 LUX ambient light (equivalent to direct sunlight)
② Smart Architecture

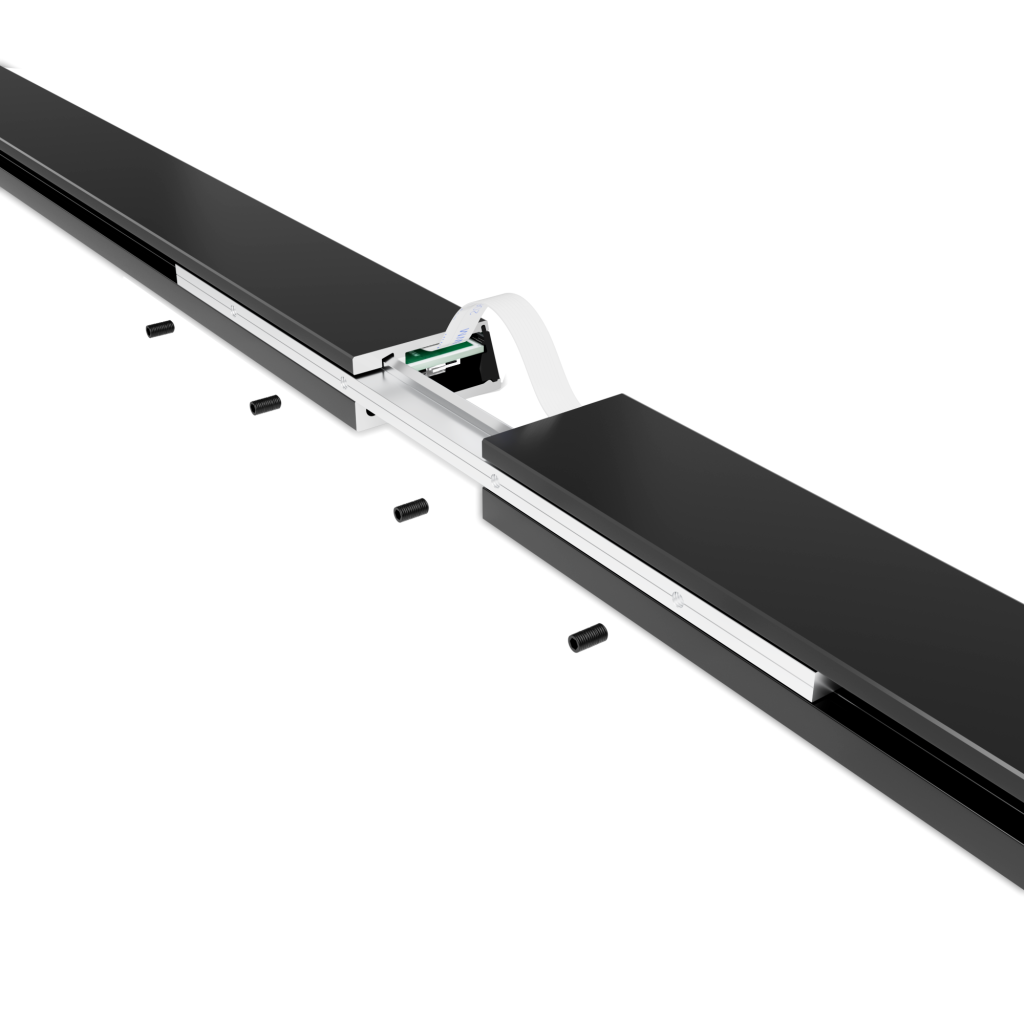

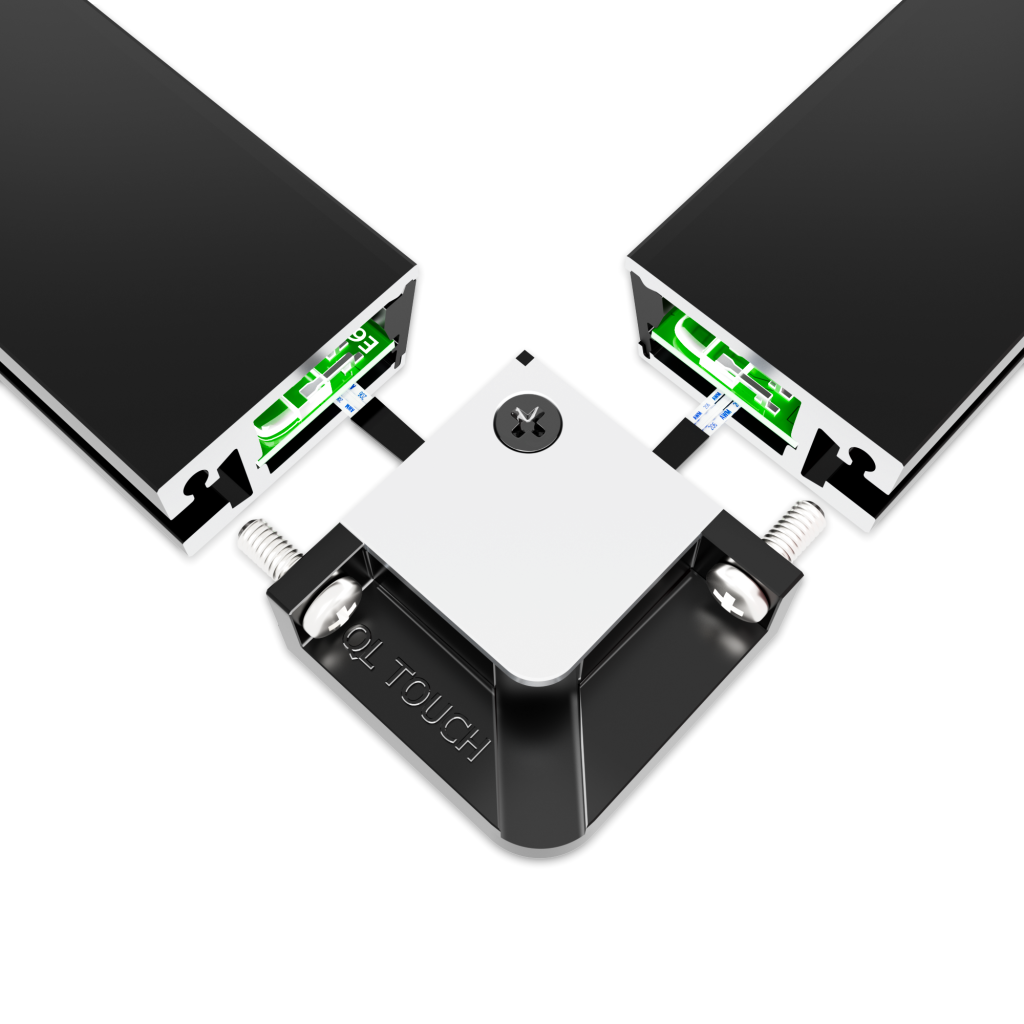

- The modular design for easy maintenance (60% cost reduction) – Directly replace the PCBA light board without dismantling the structure, and replace the core components at a low cost
- The QC-SUSB module defaults to Fixed Mapping Mode, transitioning to Dynamic Mapping Mode upon receiving configuration commands from an external controller.
- Built-in diagnostics & 3D installation guidance
③ Universal Compatibility
- Plug-and-play: Windows/macOS (Multi-touch Driver is available)/Linux/Android
- Debugging detection efficiency is high with intelligent diagnostic software
- SDK for system integration & TUIO protocol support
Product Drawings & Dimensions
(Swipe right to view the full content)

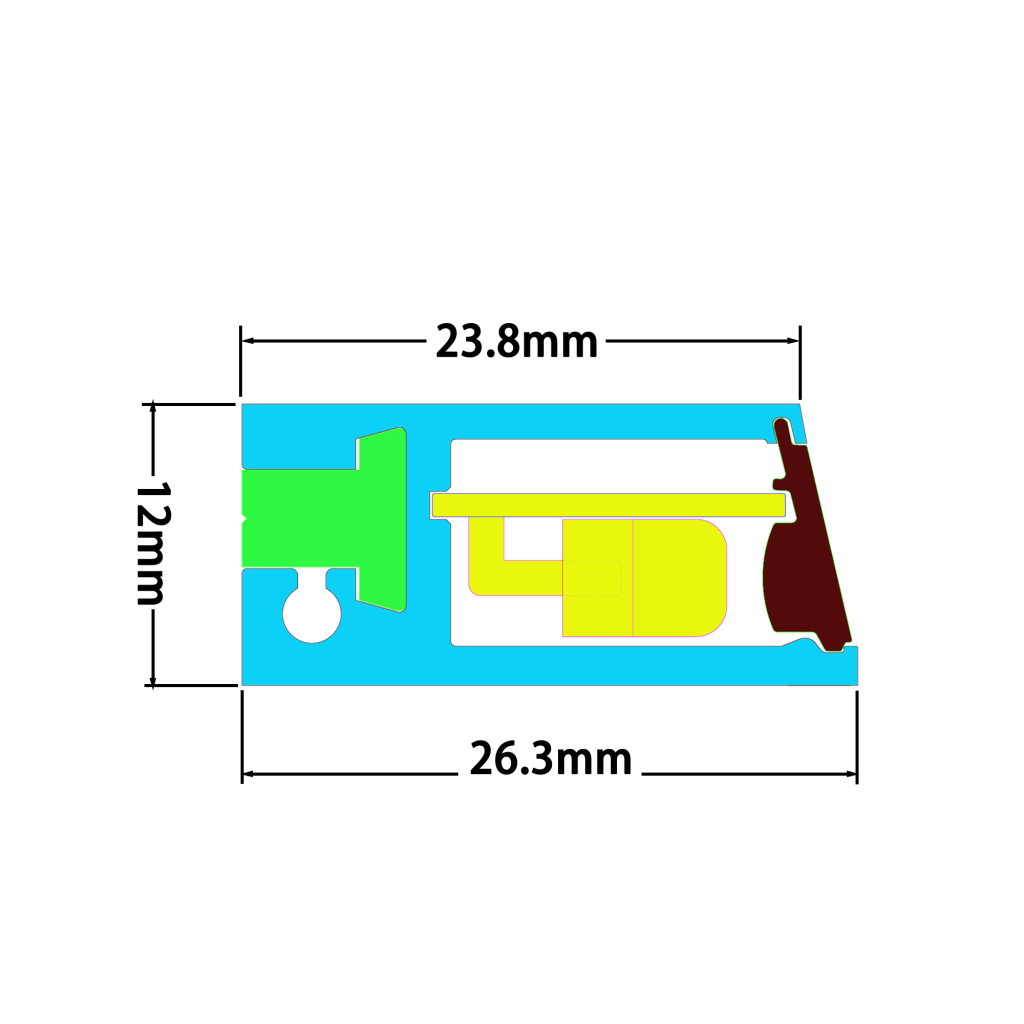

| Series | Size (inch) | Display Area | Bezel Width | Thickness | PDF Drawing | DXF Template |
|---|---|---|---|---|---|---|
| E | Custom | Length Under 6m | 26.3 | 12 | QT-IRHS10E_Series_Template_LengthUnder6m_v1 | QT-IRHS10E_Series_Template_LengthUnder6m_v1 |
| Custom | Length Over 6m | 26.3 | 12 | QT-IRHS10E_Series_Template_LengthOver6m_v1 | QT-IRHS10E_Series_Template_LengthOver6m_v1 |
Specifications
Download DatasheetSize (Customize): up to 12 m
Detectable Touch Points: 10-32 points
Glass: Non
Frame Color: Black
Frame Thickness: 12 mm
Power Supply:
- Operating <400 mA, 4.5 V ~ 5.5 V
- Sleep <150 mA, 4.5 V ~ 5.5 V
Interface (Optional):
- USB Series A USB 2.0 (Full speed. Compatible with USB 1.1 port. HID compatible. Plug and play compatible)
- Com: Baud:115200 bit/s
OS: Windows 2000, Windows XP, Windows Vista, Windows 7 or later, Linux, macOS, Android

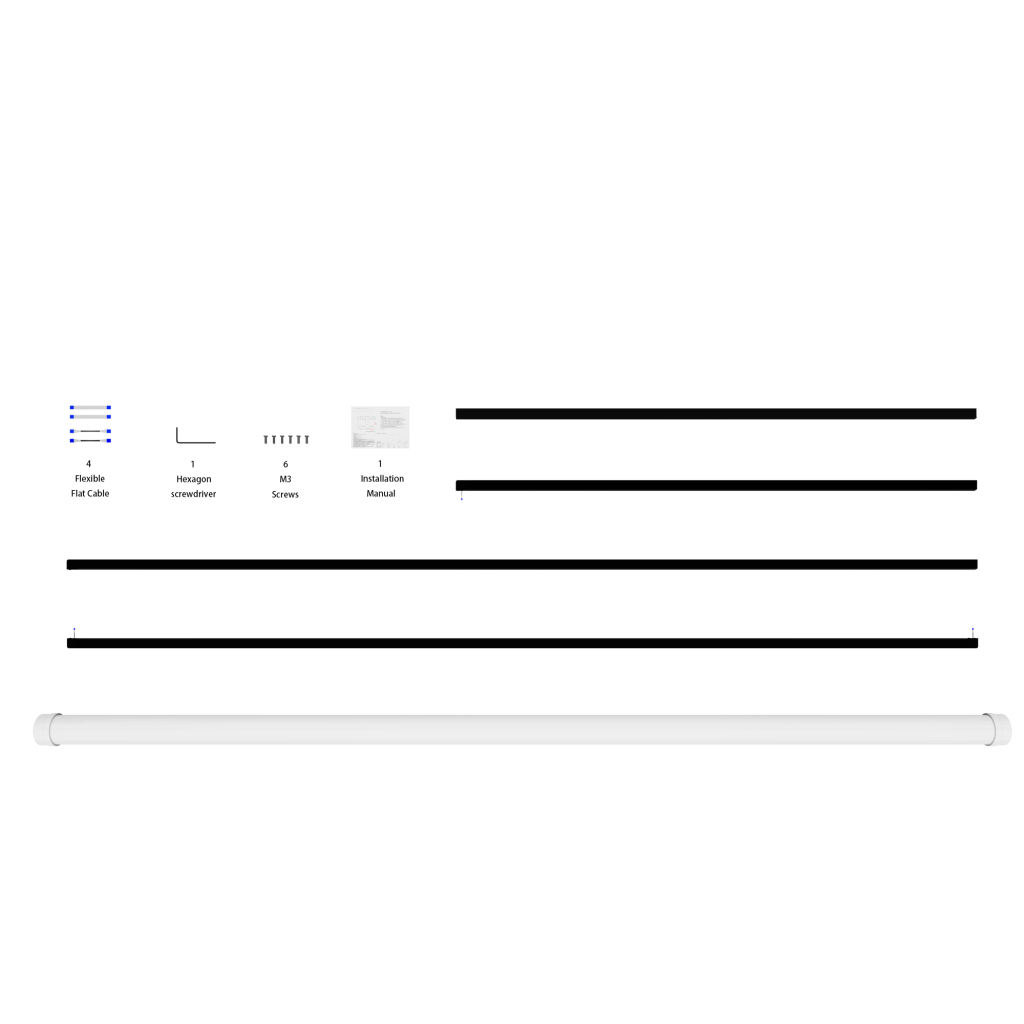

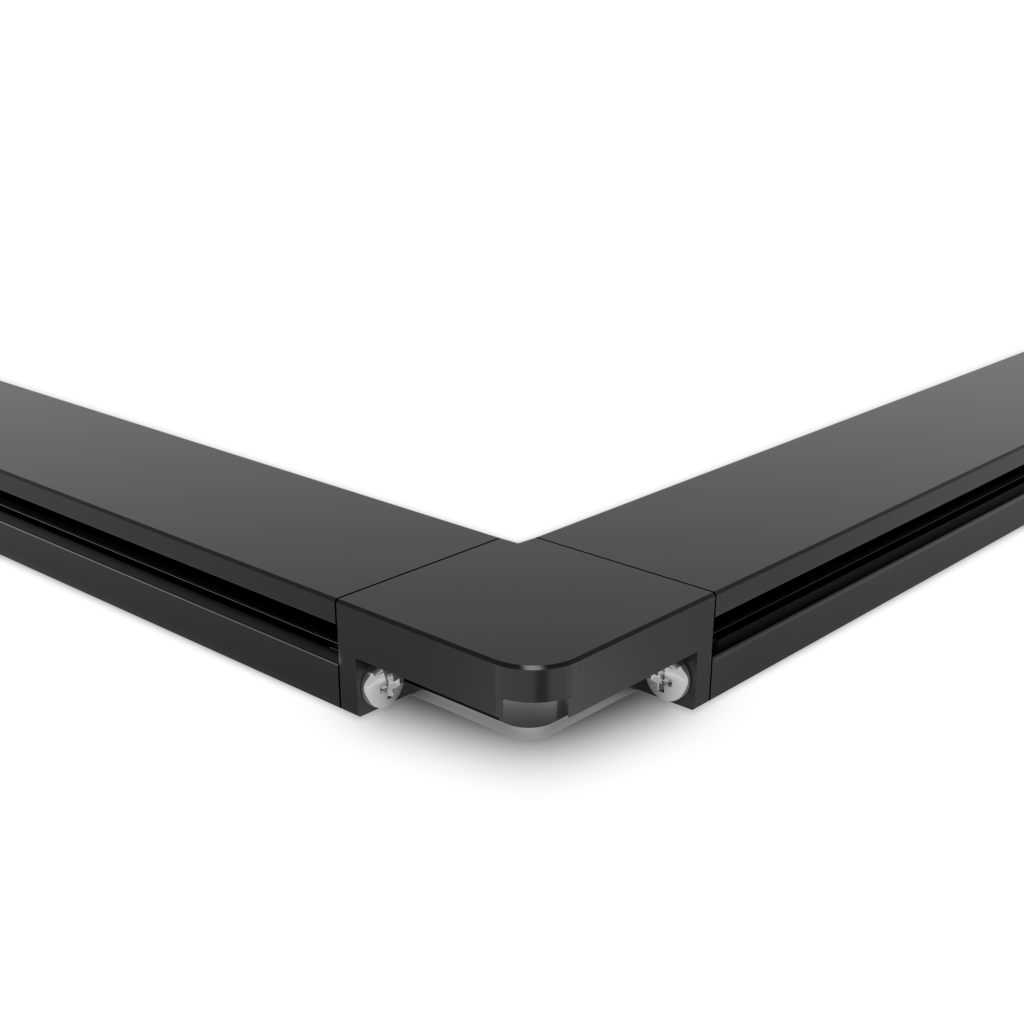

Construction: PCBA, Aluminum, Infrared filter

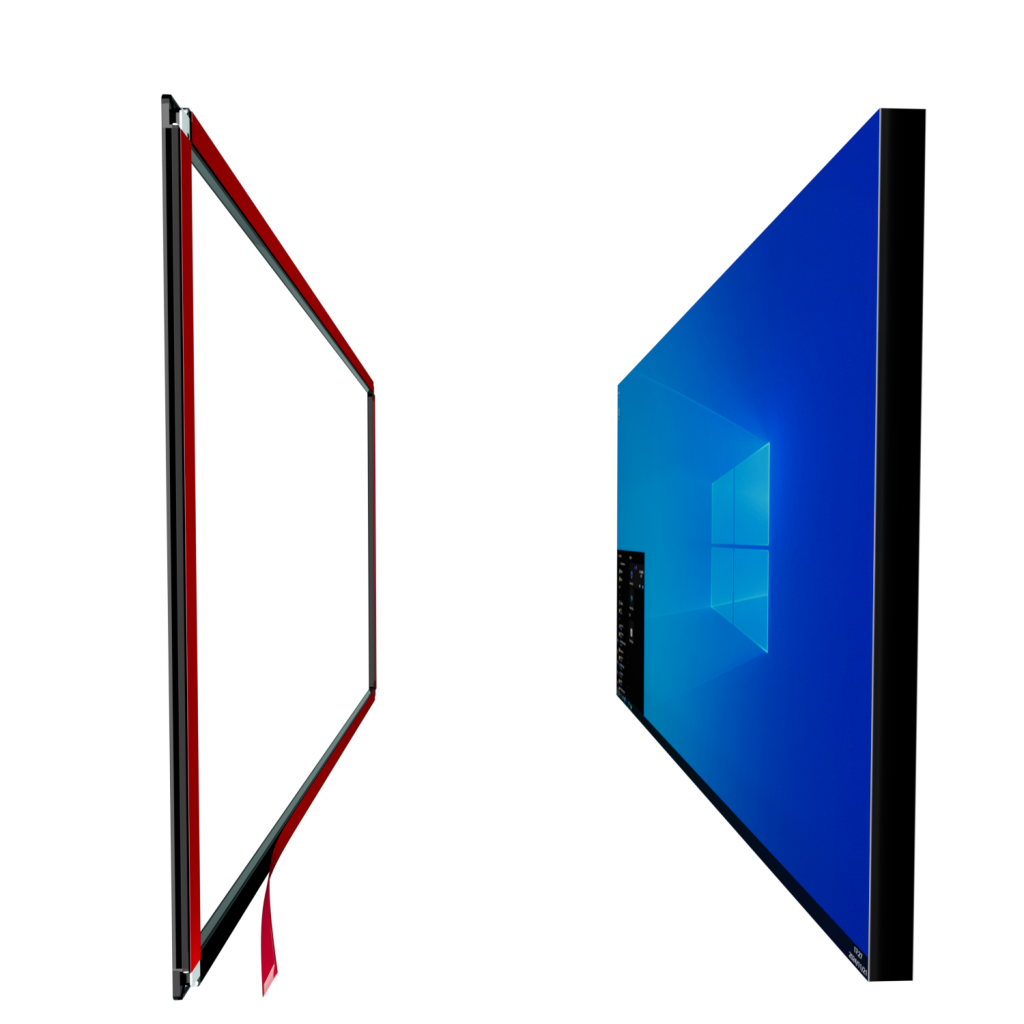

Assemble: Easy to assemble
Touch Method:
- Finger, gloved hand, non-transparent pointer.
- Center area: Stylus minimum 6 mm tip. Marginal area (<2.0 cm): Stylus minimum 8mm tip.
Touch Accuracy: <±1 mm
Touch Durability: Unlimited
Touch Activation Force: No pressure required
Report Resolution: 32767*32767
Touch Response Time: Single touch < 10 ms
Light Resistance:
- Sunlight-Resistant Design: High-intensity infrared-emitting diodes mounted on the lower bezel, stable performance under 10,000 LUX ambient light

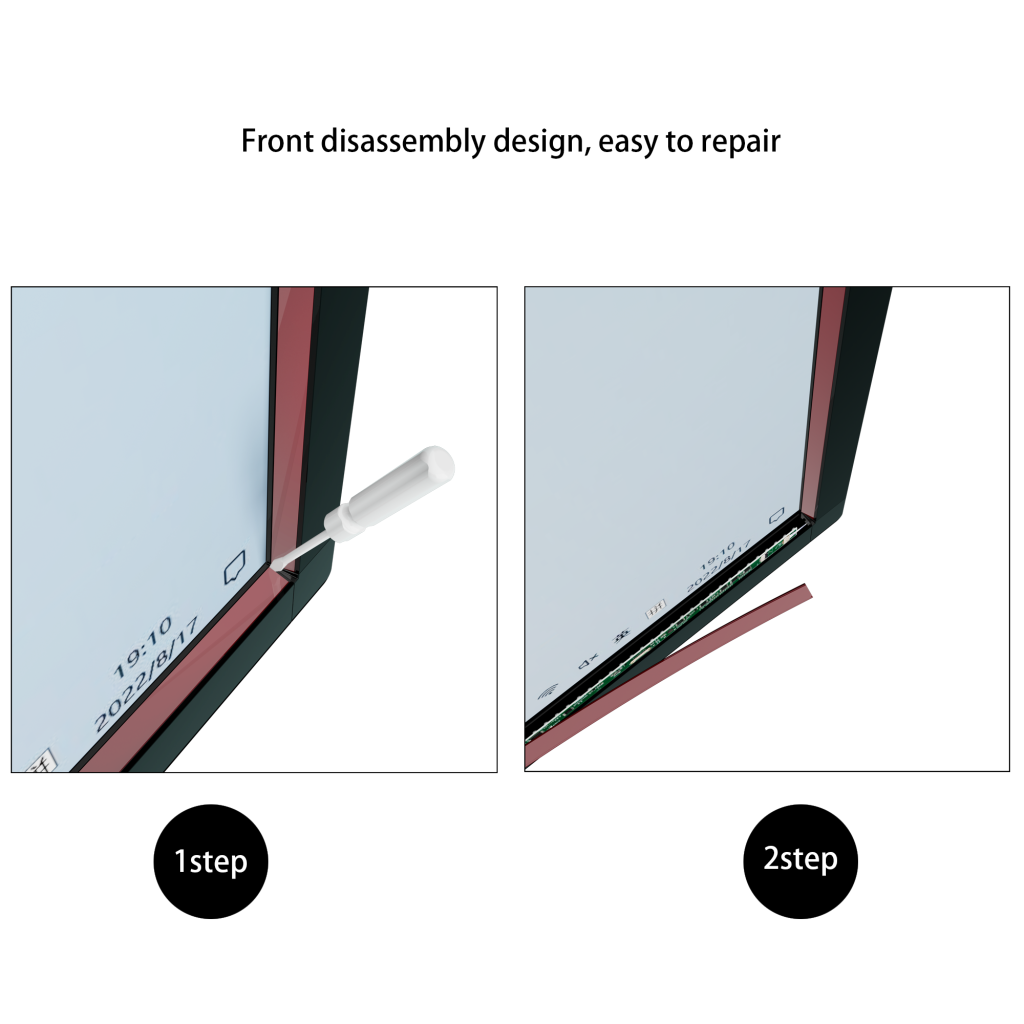

Front Maintenance: Supported
Environment:
- Operating Temperature -20 ℃ to 65 ℃
- Storage temperature: -30 °C to 85 °C
- Operating humidity:10% to 90% RH, non-condensing
- Storage humidity: 10% to 90% RH, non-condensing
- Electrostatic protection: Per EN61000-4-2 1995: level 4, contact discharge 8 KV, air discharge 15 KV
- EMS: IEC61000-4-3:2002 3 V/m
- EMI: EN55022-2006 class B
Software & Driver:
- Plug-and-play:
Windows/macOS (Multi-touch Driver is available)/Linux/Android
Debugging detection efficiency is high with intelligent diagnostic software
SDK for system integration & TUIO protocol support
- COM-Interface: Optional protocol, support for up to 5 conference tablet solutions
Warranty: 1 year
Applications
Large size Electronic Whiteboard, Advertising Machine, Splice Liquid Crystal Display, Showcase Enhancement, Educational Interactive Stations, Information Machine, Touch Video Wall, Interactive Exhibition Walls/Interactive Digital Showroom.
