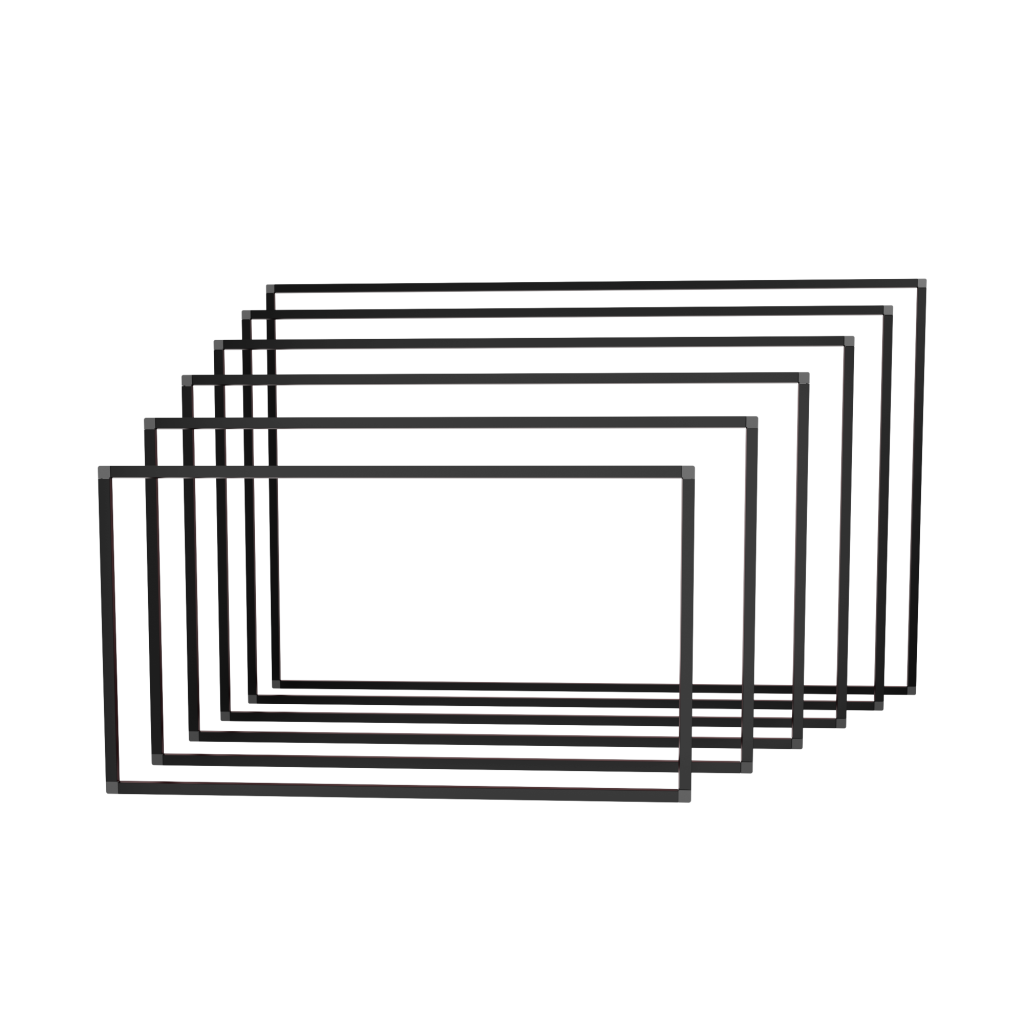

Size (Customize): >100” (Max 240”)
Detectable Touch Points: 20 points
Glass: Non
Frame Color: Black

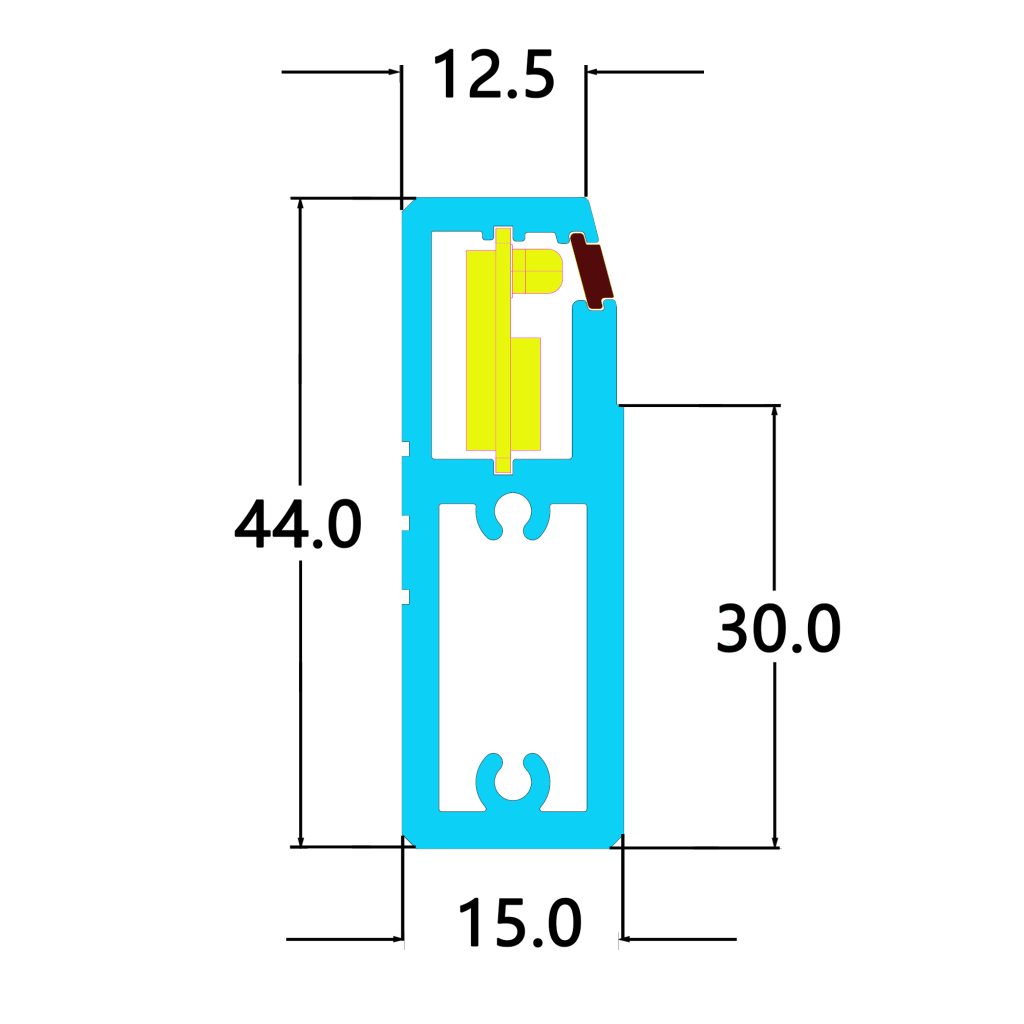

Frame Thickness: 44 mm
Power Supply:

• Operating <400 mA, 4.5 V ~ 5.5 V
• Sleep <150 mA, 4.5 V ~ 5.5 V

Interface (Optional):

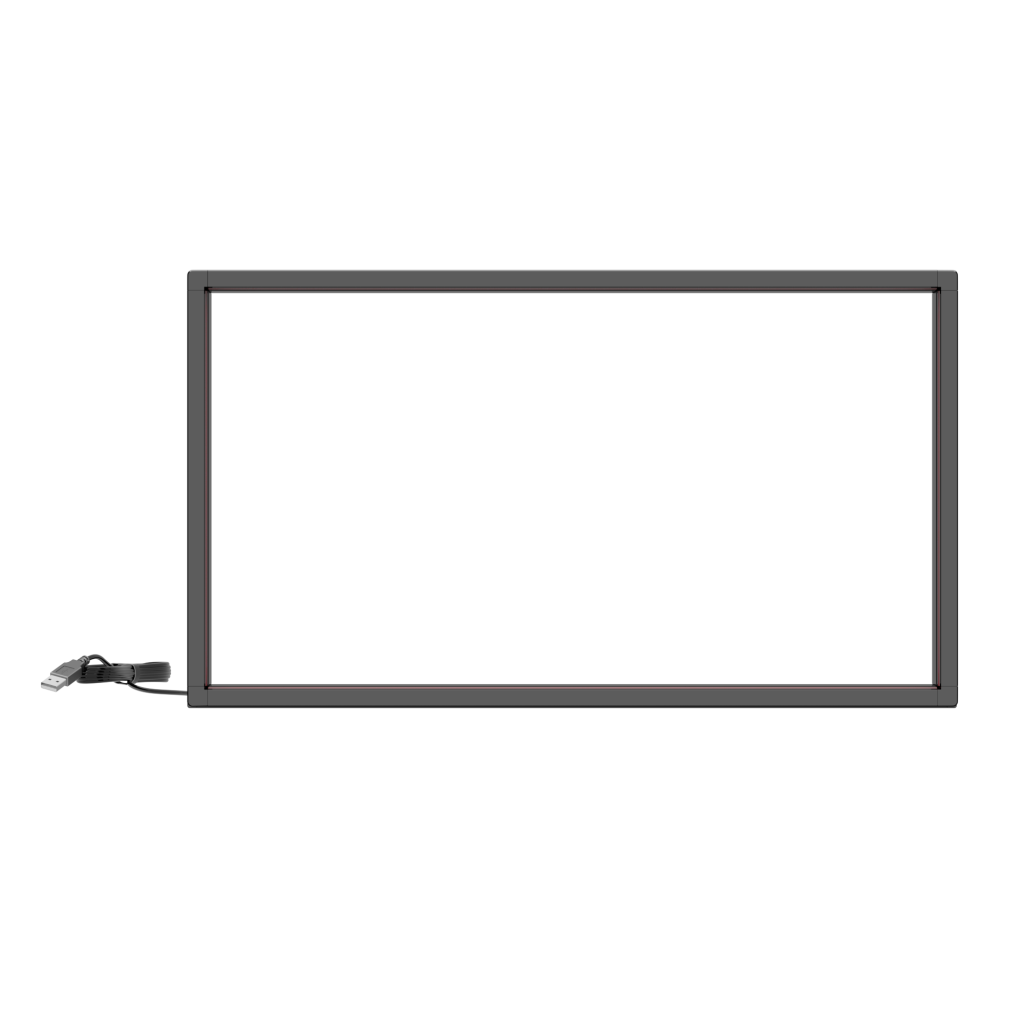

• USB Series A USB 2.0 (Full speed. Compatible with USB 1.1 port. HID compatible. Plug and play compatible)
• Com: Baud:115200 bit/s

OS: Windows 2000, Windows XP, Windows Vista, Windows 7 or later, Linux, macOS, Android

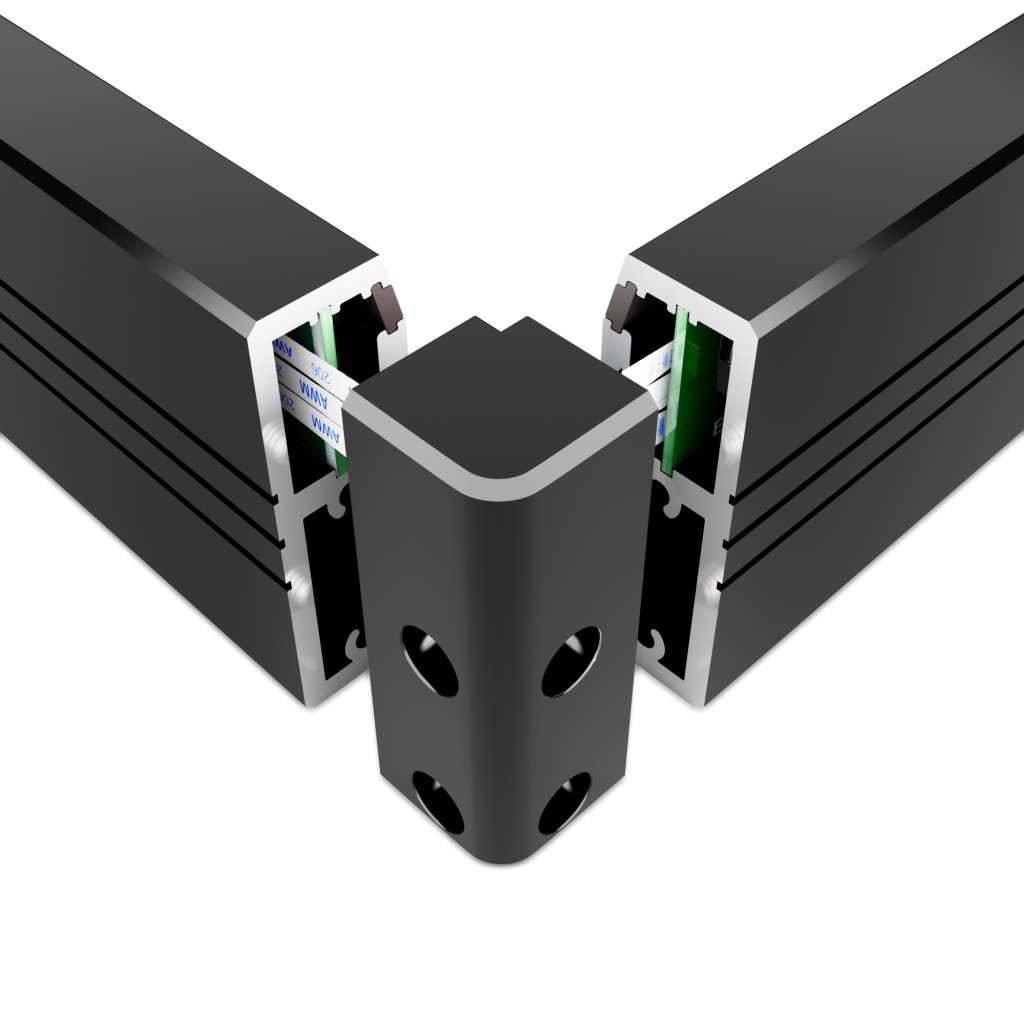

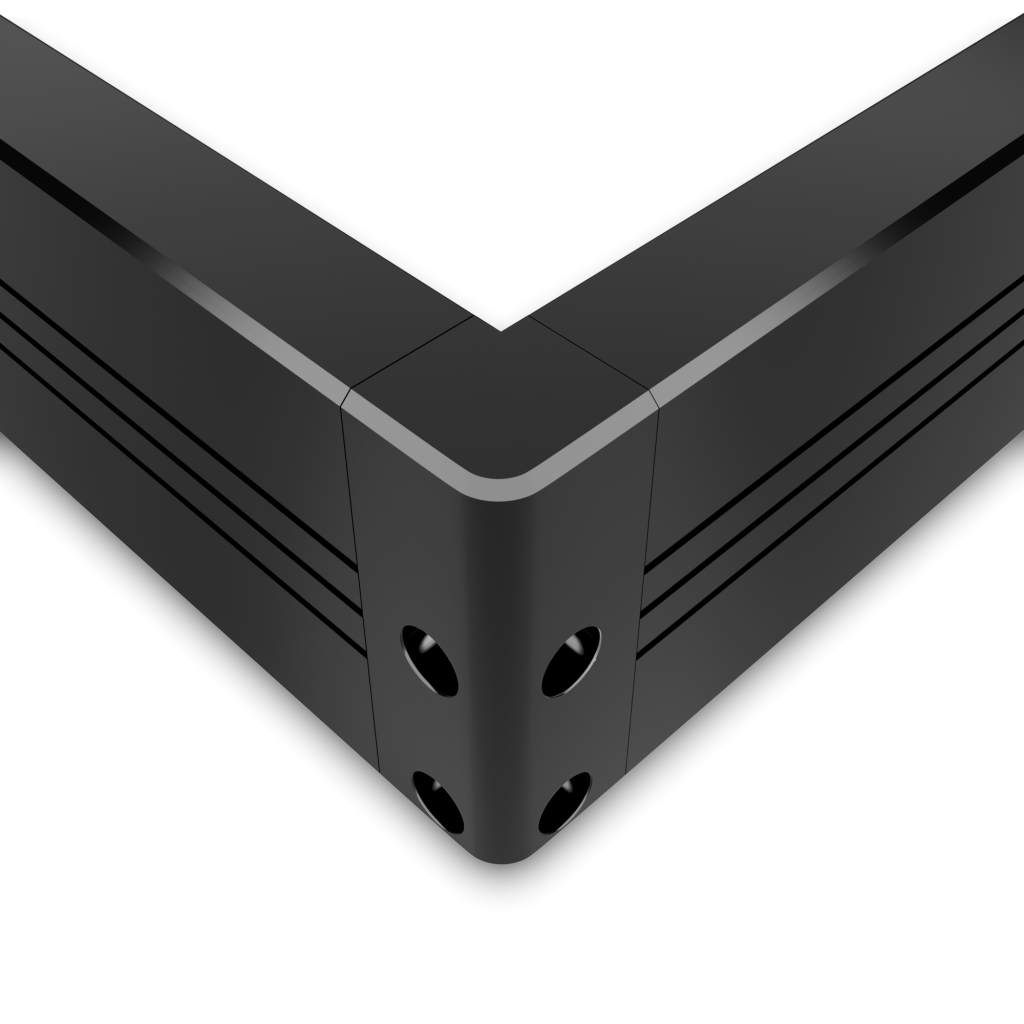

Construction: PCBA, Aluminum, Infrared filter
Assemble: Easy to assemble

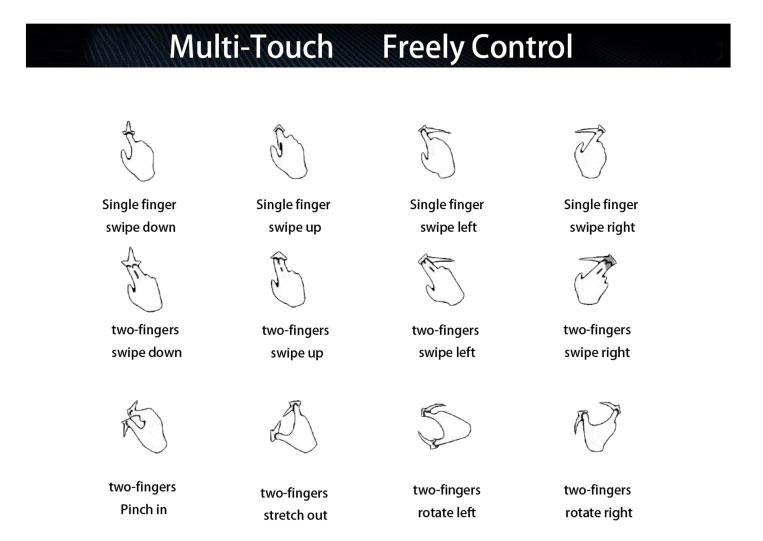

Touch Method:

• Finger, gloved hand, non-transparent pointer.
• Center area: Stylus minimum 6 mm tip. Marginal area (<2.0 cm): Stylus minimum 8mm tip.

Touch Accuracy: <2 mm
Touch Durability: Unlimited
Touch Activation Force: No pressure required
Report Resolution: 32767*32767
Touch Response Time: Single touch < 5 ms, 10-touch <15 ms, 20-touch < 20 ms
Light Resistance:

• Advanced anti-interference technology: Patented filtering for LED display infrared noise, ensuring stable operation even in high-ambient-light environments (up to 10,000 LUX)
• The side of touch frame with the emitting diode is installed on the bottom edge of the screen, and the touch frame has high light resistance, which is suitable for outdoor use

Front Maintenance: Supported

The Dual-USB will be Mapping to 2 Hosts:

• Fixed Mapping Mode:

① In one touch frame area, a host uses with multiple displays of extended mode, each display supports touch (non-simultaneous), up to 64 channels, and supports up to 64 channels.
② A touch frame area contains multiple monitors of different hosts, each host can be touched at the same time without interfering with each other, and supports up to 32 channels.
③ In one touch frame area, touch can be working with multiple displays of different hosts or expand multiple displays of one host, or in combination.

• Dynamic Mapping Mode:

Provide a secondary development kit interface to communicate with the matrix, splicing processor, and other central controllers, which can realize touch synchronization with the addition of signal sources, switching, window opening, and roaming.

Environment:

• Operating Temperature -20 ℃ to 65 ℃
• Storage temperature: -30 °C to 85 °C
• Operating humidity:10% to 90% RH, non-condensing
• Storage humidity: 10% to 90% RH, non-condensing
• Electrostatic protection: Per EN61000-4-2 1995: level 4, contact discharge 8 KV, air discharge 15 KV
• EMS: IEC61000-4-3:2002 3 V/m
• EMI: EN55022-2006 class B


Software & Driver:

• Plug-and-play:

Windows/macOS (Multi-touch Driver is available)/Linux/Android
Debugging detection efficiency is high with intelligent diagnostic software
SDK for system integration & TUIO protocol support

• COM-Interface: Optional protocol, support for up to 5 conference tablet solutions

Warranty: 1 year
