Industrial-Grade IR Touch Frames
—Built for harsh environments
Product Advantages
FCC & CE certified
Operating -20°C to 65°C · storage -30°C to 85°C · humidity 10–90% non‑condensing.
ESD protection level 4
Contact discharge ±8kV, air discharge ±15kV (EN61000-4-2). Robust for industrial EMC.
EMS / EMI compliance
IEC61000-4-3 3V/m · EN55022 class B. Reliable in electrically noisy environments.
Explosion‑proof touch
Even if the display glass shatters, the IR frame continues to register touches — maximum safety.

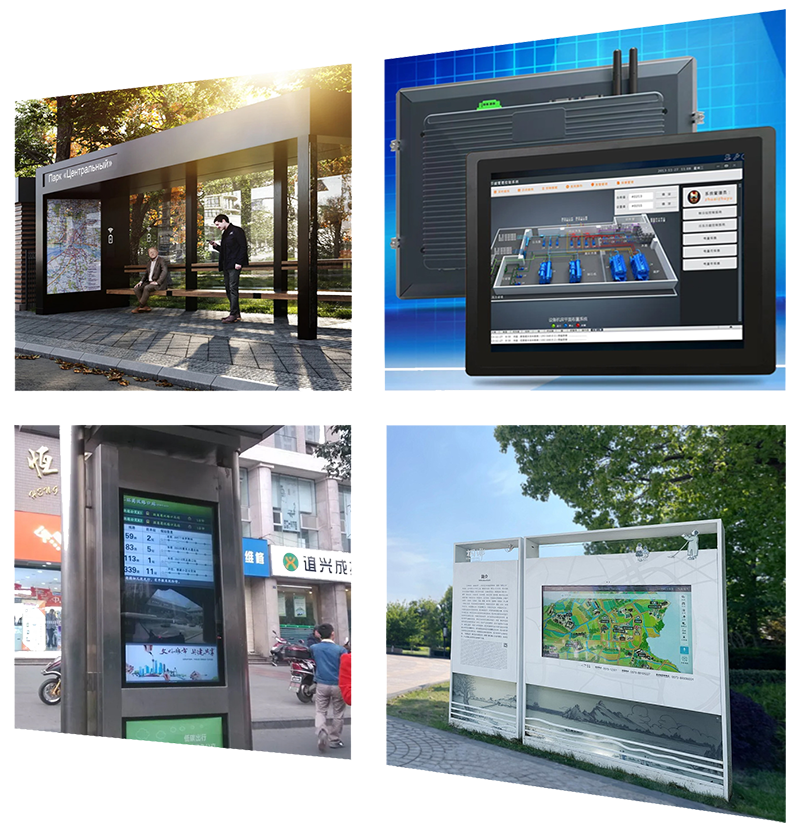

Industrial‑grade features · waterproof & rugged
F‑Series waterproof option
Special waterproof structure for F‑Series: top and bottom PCBA connections are fully sealed, making the frame resistant to moisture and splash water. Ideal for humid industrial sites or semi‑outdoor kiosks.
Note on blind zone:~5cm near first/last IR LED on left/right edges (normal for waterproof design). Central area full touch.
All series industrial ready
All E‑Series, K‑Series and F‑Series share these industrial ratings. Waterproof modification only applies to F‑Series (order as option).
Product series
Industrial specifications & applications
E‑Series · custom
| Accuracy | < ±1mm |
| Touch points | 10–32 simultaneous |
| Response | <10ms |
| Max size | 500″ (12m) |
| Sunlight | 10k LUX, shielded |
| Architecture | Modular PCBA, QC-SUSB |
| Industrial | -20°C~65°C, ESD level 4 |
Applications
K‑Series · LED specialist
| Accuracy | < ±1mm |
| Touch points | 20 simultaneous |
| Response | <6ms |
| Max size | 240″ (5m) |
| Bezel | 12mm (world’s narrowest) |
| Dual-host | Dual-USB, dynamic mapping |
| Industrial | -20°C~65°C, anti-interference |
Applications
F‑Series · 27–110"
| Accuracy | < ±1mm |
| Touch points | 40-touch capability |
| Latency | <10ms |
| Sunlight | 10klux operation |
| Profile/Bezel | 10mm thin, 18mm bezel |
| Waterproof opt. | Sealed top/bottom (IP54) |
| Industrial | -20°C~65°C, 500k units |
Applications
Large touch in action
12m LCD video wall with E‑Series
Museum showroom — 64‑point touch, seamless interaction (3:10 min)
K‑Series on 163" Micro LED
Ultra‑slim bezel, modular 300mm segments (2:40 min)
Projection video wall touch
3‑projector blend with E‑Series — calibration & TUIO (2:55 min)
100m USB extension
Host in server room, touch frame in lobby — real‑time response (2:15 min)
