F-Series Standard (27″-110″)
Core Advantages
① Precision Touch
✔ Touch Accuracy: <±1 mm

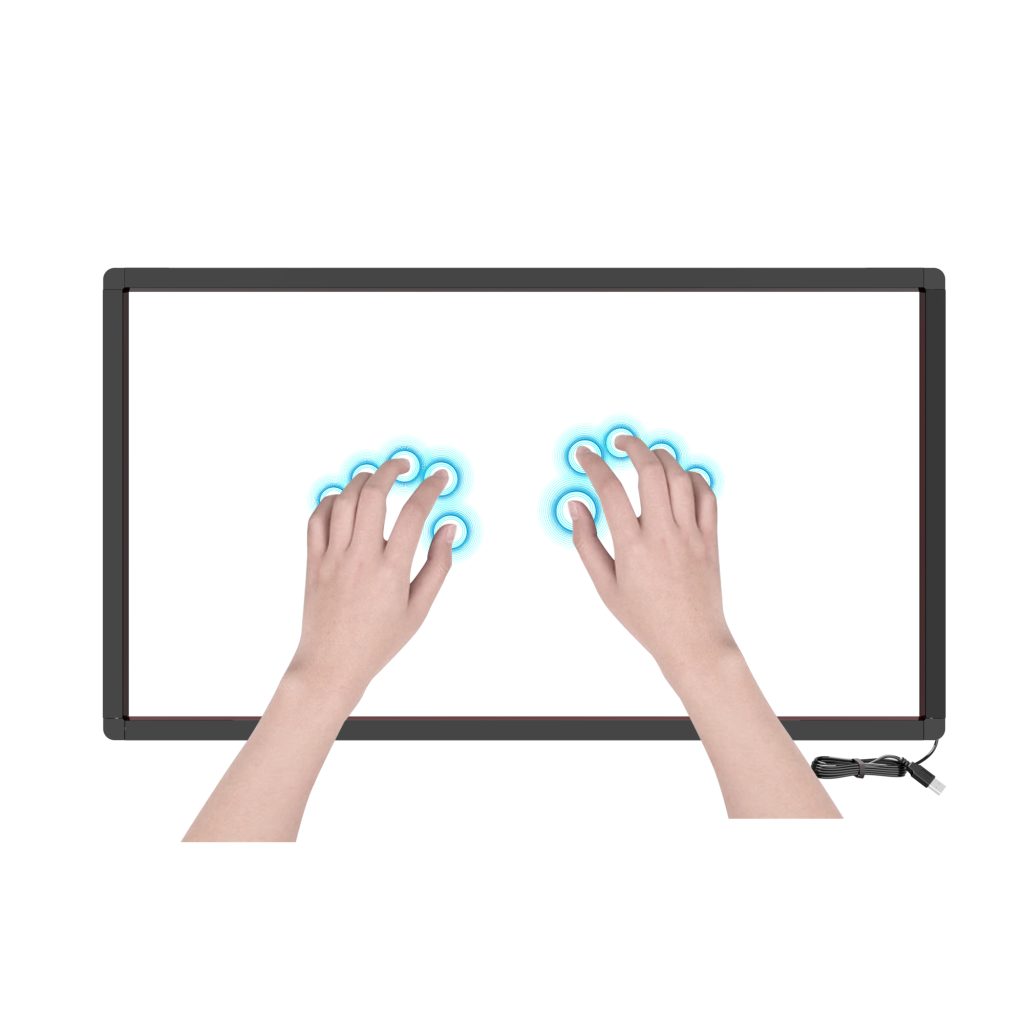

✔ 40 simultaneous touches & <10 ms latency
✔ Ultra-fast 10 ms response time
✔ 10klux sunlight operation – no glare in semi-outdoor spaces
✔ Market-proven reliability: 500,000+ units deployed with consistent performance standards

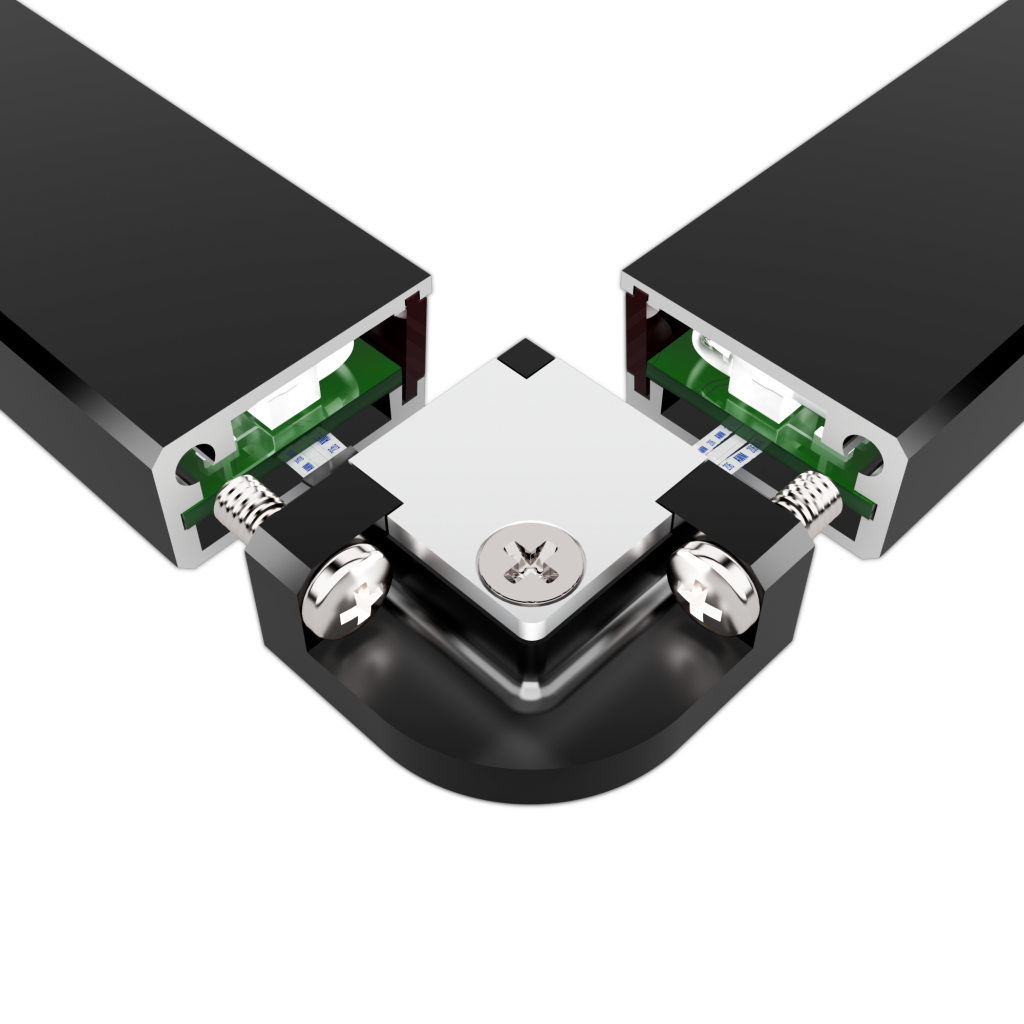

② Smart Architecture

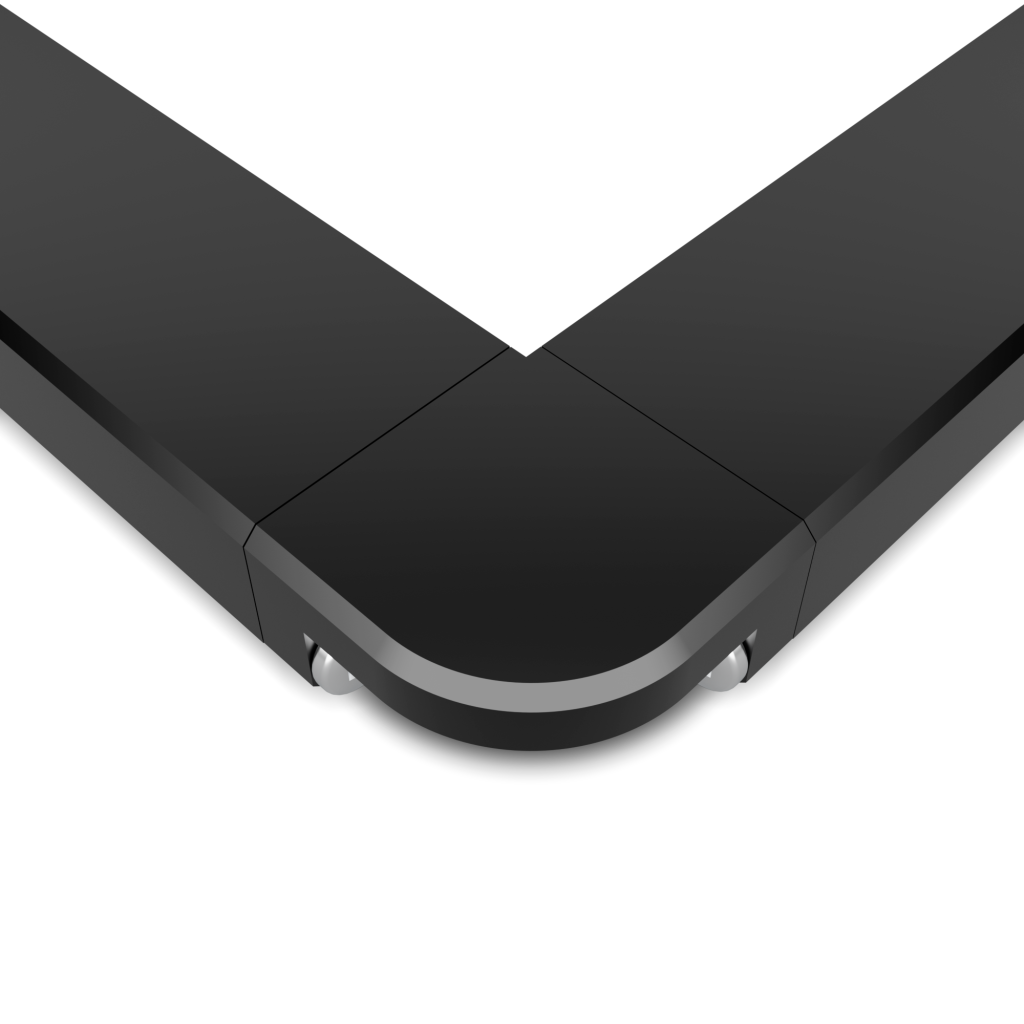

✔ Sleek industrial design with ultra-thin 10 mm profile and narrow 18 mm bezel width
✔ Built-in diagnostics reduce downtime by 70%
✔ 3 mm ultra-clear tempered glass overlay (Note: Requires wooden crate packaging for shipment)
③ Universal Compatibility
✔ Plug-and-play: Windows/macOS (Multi-touch Driver is available)/Linux/Android
✔ Debugging detection efficiency is high with intelligent diagnostic software
✔ SDK for system integration & TUIO protocol support

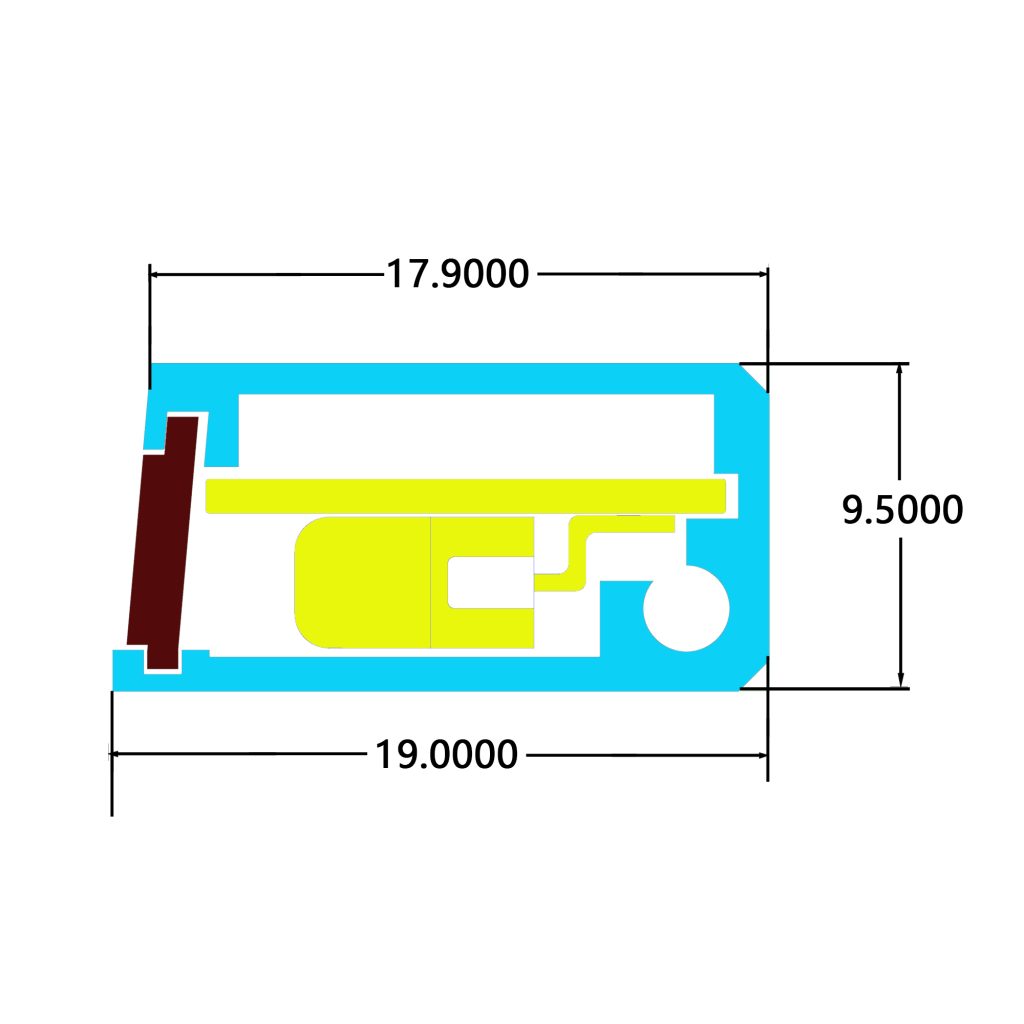

Product Drawings & Dimensions
| Series | Size (inch) | Display Area | Touch Area | Outer Dimension | Bezel Width | Thickness | PDF Drawing | DXF Template | |||
| W | H | W | H | W | H | ||||||
| F | 31.5‘’/32‘’ | 698.4 | 392.85 | 701.7 | 396.3 | 739.7 | 434.3 | 19 | 9.5 | QT-IRHS40F-31.5 | QT-IRHS40F_Series_Template_v1 |
| 40‘’ | 929.28 | 392.04 | 932 | 396 | 970 | 434 | 19 | 9.5 | QT-IRHS40F-40 | ||
| 43‘’ | 940.896 | 529.254 | 944.2 | 532.4 | 982.2 | 570.4 | 19 | 9.5 | QT-IRHS40F-43 | ||
| 55‘’ | 1209.6 | 680.4 | 1213.8 | 684.4 | 1251.8 | 722.4 | 19 | 9.5 | QT-IRHS40F-55 | ||
| 64.5‘’/65‘’ | 1428.48 | 803.52 | 1431 | 806 | 1469 | 844 | 19 | 9.5 | QT-IRHS40F-65 | ||
| 75‘’ | 1649.66 | 927.936 | 1651 | 929 | 1689 | 967 | 19 | 9.5 | QT-IRHS40F-75 | ||
| 86‘’ | 2148.48 | 335.7 | 1896 | 1067 | 1934 | 1105 | 19 | 9.5 | QT-IRHS40F-86 | ||
| 98‘’ | 2158.85 | 1214.35 | 2160 | 1215 | 2198 | 1253 | 19 | 9.5 | QT-IRHS40F-98 | ||
(Swipe right to view the full content)
Specifications
Size (Standard) :
27″, 31.5″, 40″, 42″, 43″, 49″, 50″, 55″,
60″, 65″, 70″,
75″, 86″, 98″, 100″, 110″
Detectable Touch Points: 40 points
Glass: Non
Frame Color: Black
Frame Thickness: 10 mm
Power Supply:
- Operating: <400 mA, 4.5 V ~ 5.5 V
- Sleep: <150 mA, 4.5 V ~ 5.5 V
Interface (Optional):
- USB Series A: USB 2.0 (Full speed. Compatible with USB 1.1 port. HID compatible. Plug and play compatible)
- Com TTL: Baud: 115200 bit/s, Optional protocol
OS: Windows 2000, Windows XP, Windows Vista, Windows 7, Linux, macOS, Android
Construction: PCBA, Aluminum, Infrared filter

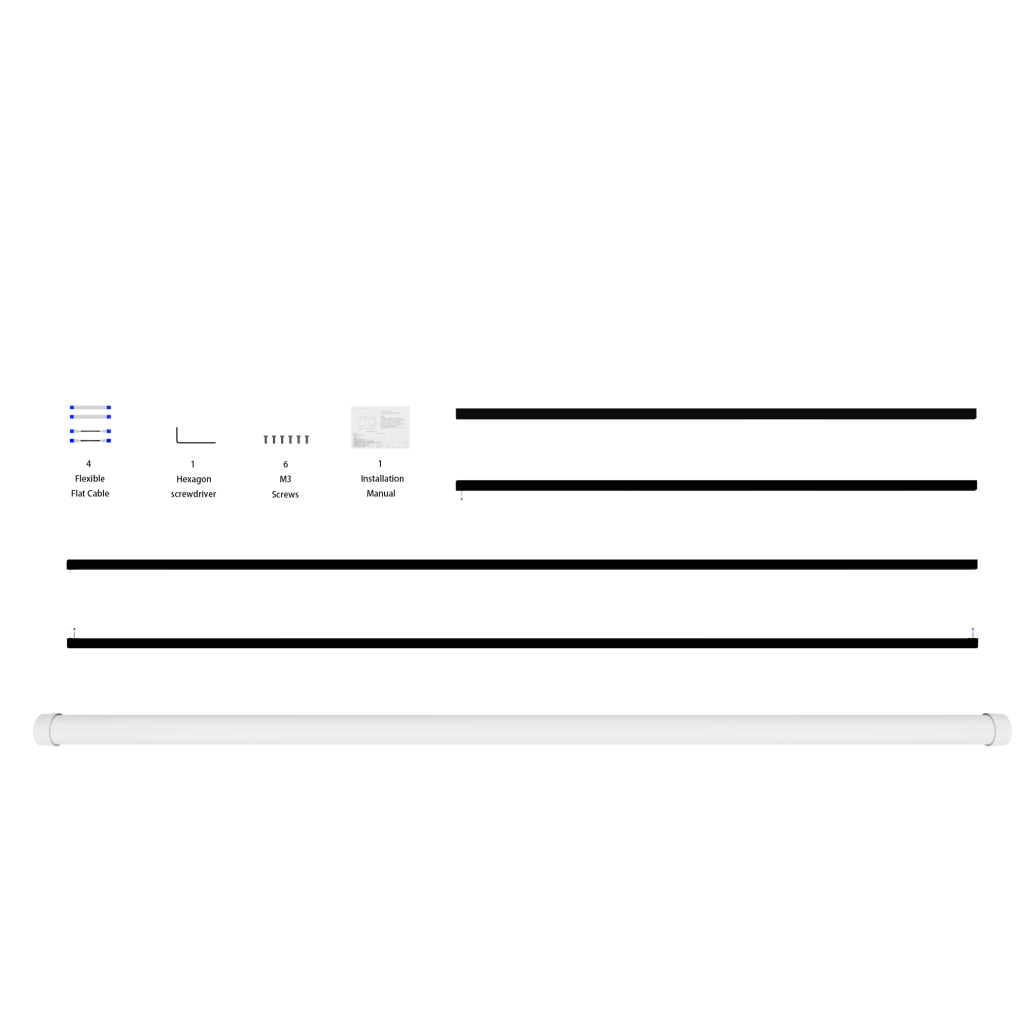

Assemble: Easy to assemble
Touch Method:
- Finger, gloved hand, non-transparent pointer.
- Center area: Stylus minimum 6 mm tip.
Touch Accuracy: <2 mm
Touch Durability: Unlimited
Touch Activation Force: No pressure required
Report Resolution: 32767*32767
Touch Response Time: Single touch <6 ms, Multi-touch<20 ms
Environment:
- Operating Temperature -20 ℃ to 65 ℃
- Storage temperature: -30 °C to 85 °C
- Operating humidity: 10% to 90% RH, non-condensing
- Storage humidity: 10% to 90% RH, non-condensing
- Electrostatic protection: Per EN61000-4-2 1995: level 4, air discharge 8 KV,
- EMS: IEC61000-4-3:2002 3 V/m
- EMI: EN55022-2006 class B
Software & Driver:
- USB-Interface:
Plug-and-play: Windows/macOS (Multi-touch Driver is available)/Linux/Android
Debugging detection efficiency is high with intelligent diagnostic software
SDK for system integration & TUIO protocol support
- COM-Interface: Optional protocol, support for up to 5 conference tablet solutions
Warranty: 1 year
Applications
Kiosks, Digital signage, Interaction Terminal Whiteboard, Advertising Machine, Information Machine.
