Multi-Touch IR Frame

Multi-Touch IR Frame
—10 to 64 points · gesture support

Product Advantages

E‑Series: 10‑64 points

Standard 10, up to 64 simultaneous touches. Ideal for large interactive walls.

K‑Series: 20‑64 points

Standard 20, max 64 touches. Ultra‑fast 6ms response, dual‑host.

F‑Series: 10‑40 points

Standard 10, up to 40 touches. 500k+ units deployed, proven reliability.

Rich gesture support

Right‑click (long press), zoom, rotate, pan — works out of the box on all modern OS.

Multi‑touch capabilities & interfaces

Gestures & interaction

TOUCHsmith multi‑touch frames enable natural gestures that go far beyond mouse replacement:

Perfect for maps, images, 3D models, and collaborative whiteboarding. SDKs for Android and Windows provide full access to touch data.

Development docs: Detailed API documentation for Android & Windows available.

All series industrial ready

USB HID: Plug‑and‑play with Windows, macOS, Linux, Android (HID driver required). For legacy systems (< Android 4.0, Win2000) or stripped drivers, use SDK/custom HID data.

TTL Serial: Raw multi‑touch coordinates, touch size, status. No OS driver — ideal for embedded systems. Can connect to remaping box to split one display into multiple zones for different hosts.

TUIO over network: Full TUIO protocol support for creative coding and multi‑touch applications.

macOS: Multi‑touch works after installing our UDDP driver (single‑touch without it).

These multi‑touch features apply to all E‑Series, K‑Series, and F‑Series products. Custom point counts available on request.

Series comparison

Multi‑touch specifications

E‑Series · 10‑64 points

Touch points	10–32 (std), up to 64
Accuracy	< ±1mm
Response	<10ms
Max size	500″ (12m)
Interfaces	USB HID, TTL, TUIO
Compatibility	Win/macOS/Linux/Android
SDK/TUIO	Yes

Applications

K‑Series · 20‑64 points

Touch points	20 (std), up to 64
Accuracy	< ±1mm
Response	<6ms
Max size	240″ (5m)
Bezel	12mm ultra-slim
Interfaces	USB HID, TTL, TUIO, dual-host

Applications

F‑Series · 10‑40 points

Touch points	10 (std), up to 40
Accuracy	< ±1mm
Latency	<10ms
Sunlight	10klux operation
Interfaces	USB HID, TTL, TUIO
Reliability	500k+ units

Applications

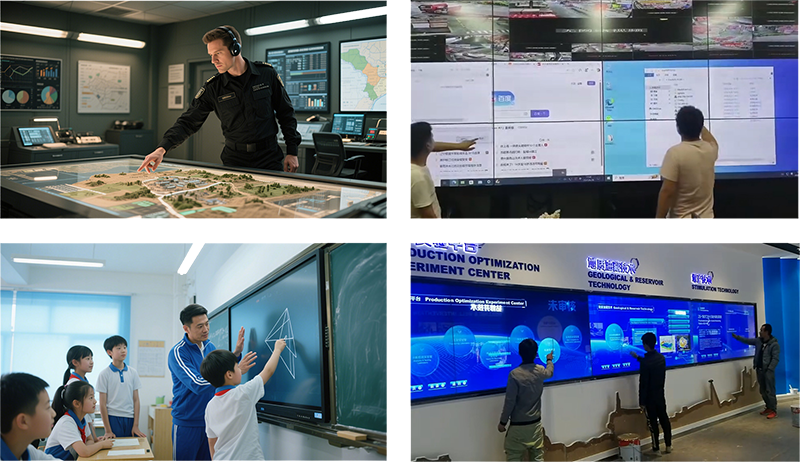

Multi‑touch in action

64 point on E Series video wall

3 users interacting simultaneously — no lag

Rotate & zoom with K Series

Map navigation on a 135″ LED wall

Serial remapping demo

One frame, two virtual screens — each controlled by different host

How to Use TUIO Protocol with E Series Touch Frame

TouchSmith provides a TUIO service program. Once running, any TUIO-compatible client can receive multi-touch data directly – no proprietary SDK required.
